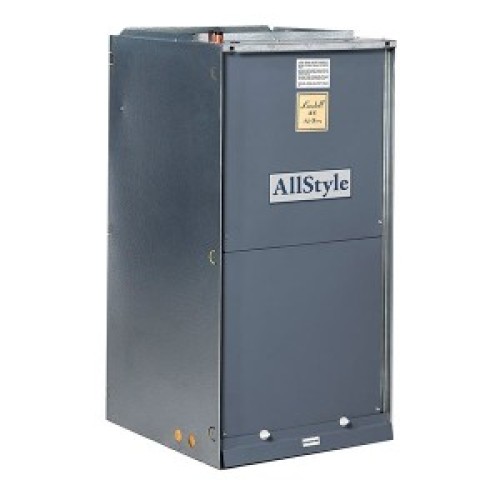

Wall Mounted Air Handlers

Model: VL, VLD*, VLN

Features:

• Vertical Up-Flow application
• Front Return Air
• Fully insulated cabinet
• Tabs for stud or wall mounting are stamped into cabinet exterior
• Long Life Aluminum or Copper DX Coils
• Aluminum fins and end plates
• 1.0 to 4.0 Tons Cooling Capacity
• Polymer drain pan
• 3/4” MPT Primary and Secondary drains
• 3/8” Liquid Refrigerant Line
• 3/4” Suction Refrigerant Line
• 208/230 VAC operation

Optional Features:

• Factory or field install Heat Pump TXV and Check Valve
• Front Return Grilles
• Factory installed Electric Heat, Disconnect, and Float Switch
• *Freeze - Stat or Enter Water T - Stat
• ECM Motor
